₹2,900.00

SHORT DESCRIPTION :

• Beam Profile : ‘W’ Shape Metal Crash Barrier
• Beam Thickness : 2 mm (+0.1 / -0.25)
• Beam Width : 313 mm
• Corrugation Depth : 83 mm
• Beam Length : 4318 mm
• Yield Strength : Minimum 240 MPA
• Surface Finish : Hot Dip Galvanized
• Zinc Coating : 550 GSM Galvanization
• Post Size : 150 mm × 75 mm × 4 mm
• Post Height : 2700 mm
• Post Distance : 2 Meter Center to Center
• Steel Type : Cold Rolled Steel Post
• Specification : As Per Railway Standards
• Application : Railway Track Side Safety Barrier System

SKU: woo-hoodie-with-zipper-5 Category:

Description

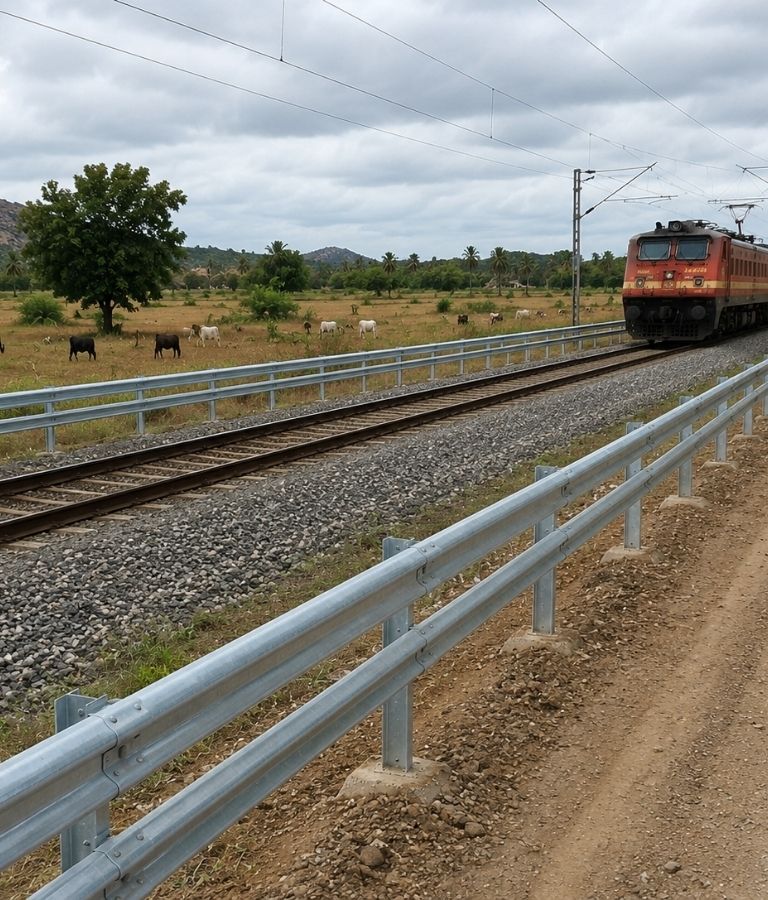

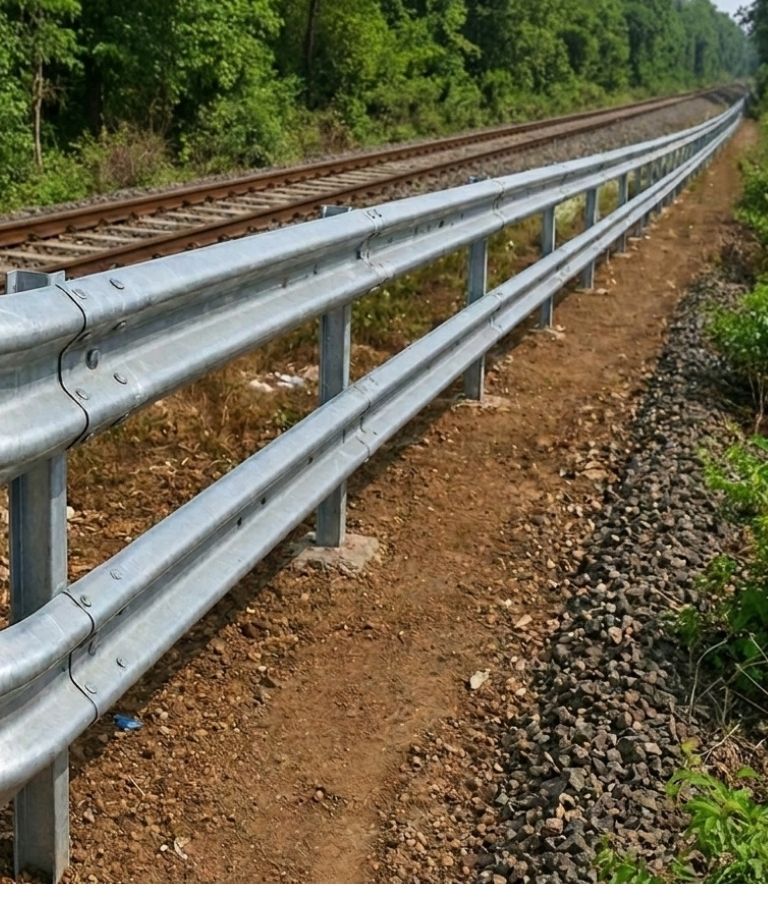

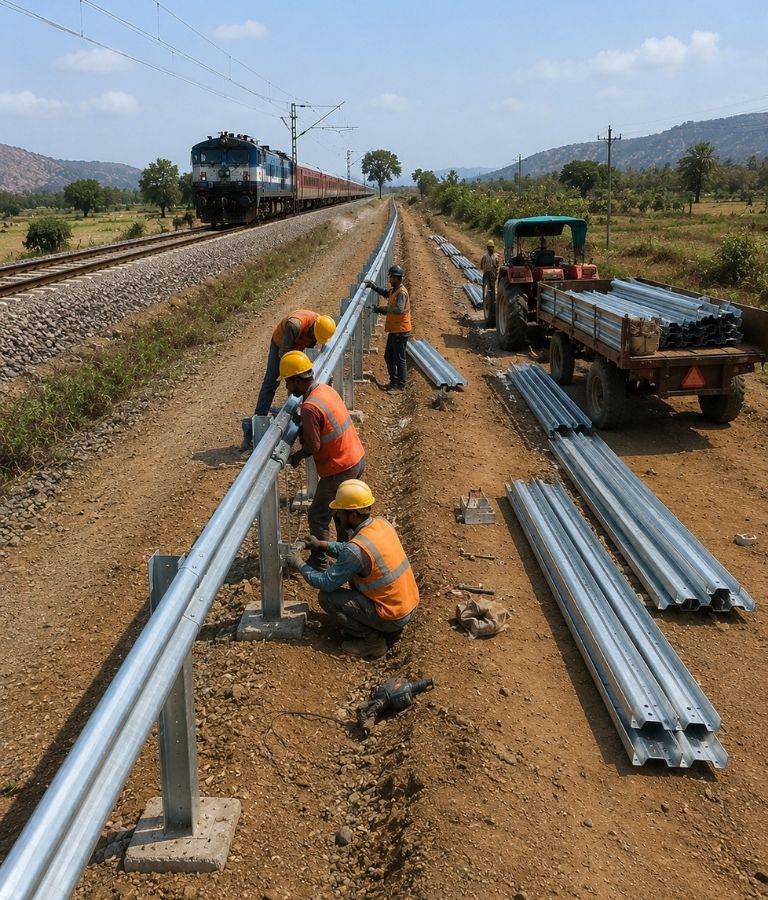

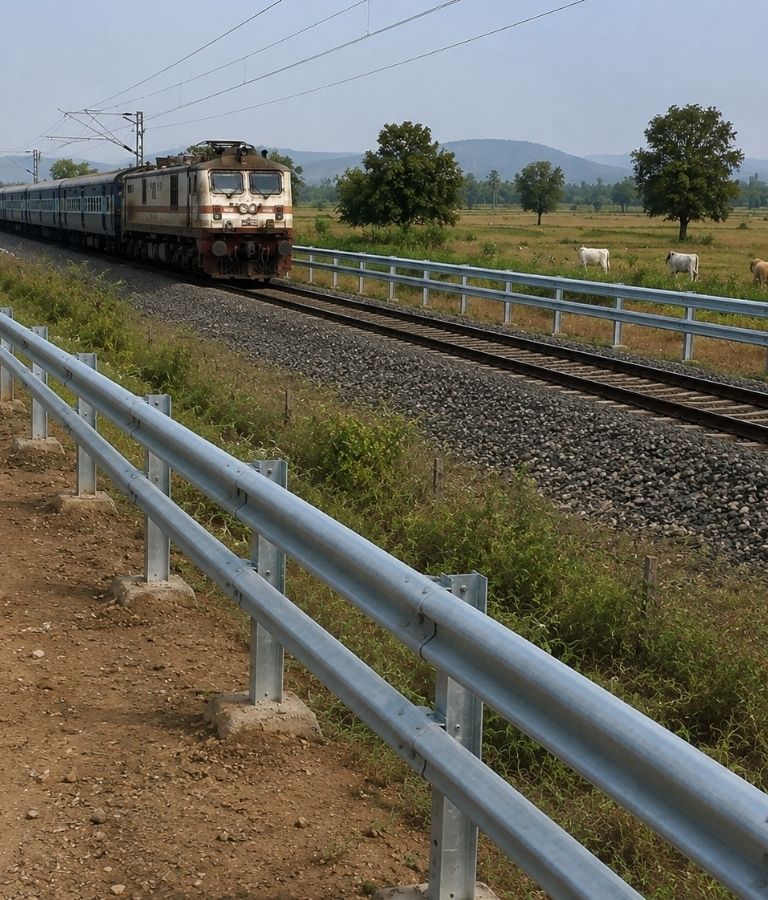

The Railway Beam Metal Crash Barrier is specially designed to provide enhanced safety and protection alongside railway tracks, service roads, bridges, and high-risk rail infrastructure zones. Built using heavy-duty galvanized steel beams and strong vertical support posts, the system helps prevent accidental vehicle intrusion near railway corridors while ensuring long-term structural durability.

Manufactured with high quality hot dip galvanized steel, the barrier offers excellent corrosion resistance and reliable performance in outdoor railway environments. The dual beam configuration improves impact absorption and vehicle redirection, making it suitable for railway crossings, trackside roads, maintenance access routes, and transport infrastructure projects.

Designed as per MORTH / IRC / IS standards, the Railway Beam Crash Barrier is available in multiple thickness and coating options with customization and installation support available as per project requirements.
