Single Side Single Beam Metal Crash Barrier

₹ 1,550/ Meter

Get Latest Price

Beam Type	Single W-Beam
Beam Thickness	2.3 mm / 2.7 mm / 3 mm
Beam Length	3810 mm (Standard)
Beam Height	312 mm
Material	Galvanized Steel
Material Grade	IS 5986 FE 410 / IS 10748 FE 410
Post Type	C-Post / Z-Post / Sigma Post
Post Thickness	4.3 mm / 4.7 mm / 5 mm
Post Height	1800 mm (Customizable)
Post Spacing	2000 mm (Center to Center)
Spacer Type	Offset Spacer Block
Coating	Hot Dip Galvanized
Galvanization	550 GSM
Bolts & Nuts	Hot Dip Galvanized
Standard	IRC / MORTH

Product Description

Our Single Side Single Beam Metal Crash Barrier is designed for effective road safety and vehicle impact control. Manufactured using high-strength galvanized steel, it ensures durability, corrosion resistance, and long service life.

These barriers are widely used on highways, bridges, industrial roads, and flyovers to minimize accident severity and guide vehicles safel

Key Technical Features

Single side mounted W-Beam crash barrier system as per IRC guidelines
Fabricated from high strength steel conforming to IS 5986 / IS 10748
Hot Dip Galvanized coating (550 GSM) as per IS 2629 / ASTM A123 for corrosion protection
Designed for controlled vehicular redirection and energy absorption
Compatible with C-Post / Sigma Post / Z-Post configurations
Standard installation with post spacing of 2000 mm (center to center)
System designed to meet IRC:SP:84 & MORTH specifications
Suitable for installation on highways, bridges, medians and embankments

Applications

• National & State Highways
• Urban Roads & Intersections
• Flyovers and Bridges
• Toll Plazas & Service Roads
• Mountain & Ghat Sections
• Industrial and Mining Roads
• Median and Roadside Safety Installations

Why Choose Us

• Manufacturing as per MORTH / IRC road safety standards
• Use of certified raw materials with traceable quality control
• Consistent galvanization thickness ensuring long-term corrosion resistance
• Capability to handle bulk project supply across India
• Custom configurations available as per project BOQ requirements
• Technical support for installation guidance and site coordination
• Reliable logistics and timely dispatch for infrastructure projects

Detailed Technical Description

Single Side Single Beam Metal Crash Barrier is a highly effective roadside safety system designed to minimize accident impact severity and improve vehicle control on highways, expressways, bridges, flyovers, and industrial roads. Manufactured using high-strength galvanized steel, the barrier provides reliable protection, long service life, and excellent resistance against harsh outdoor environmental conditions.

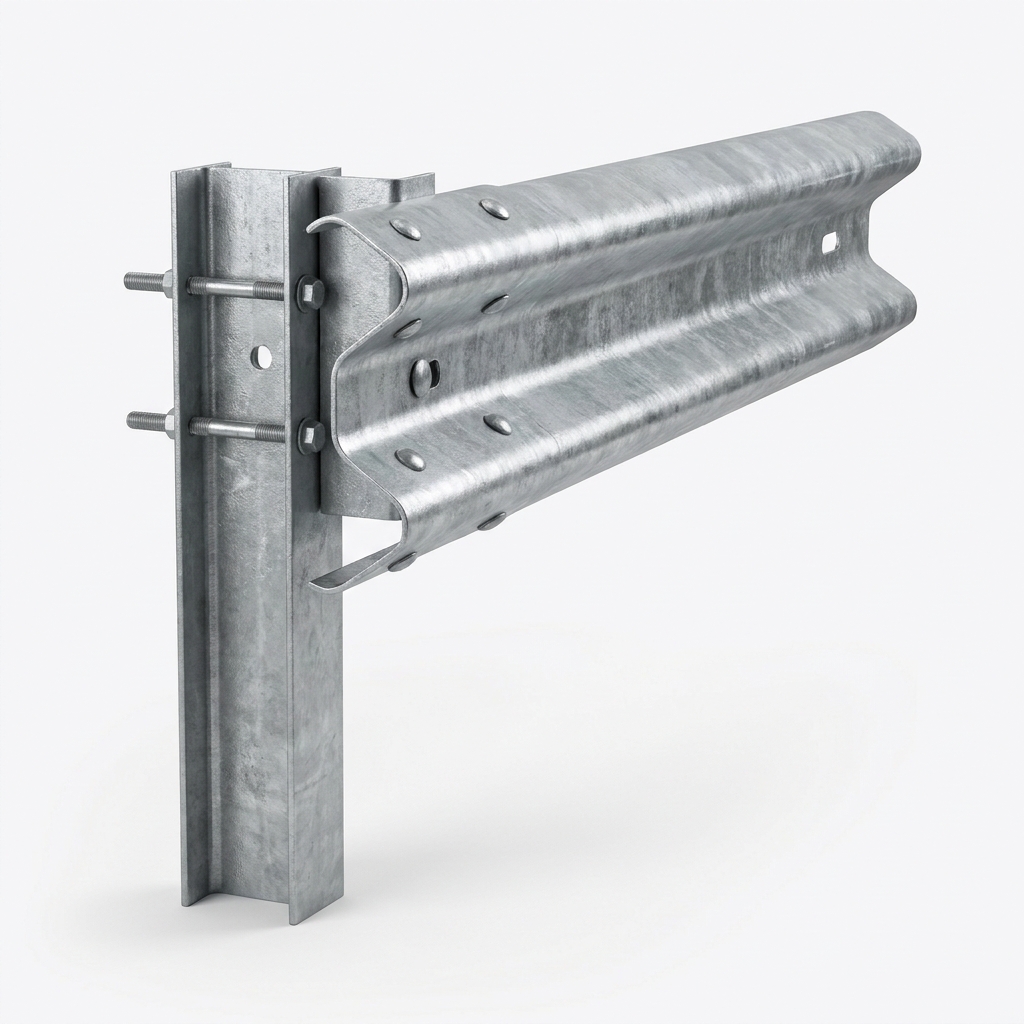

The system features a single W-beam profile mounted on strong steel support posts, helping absorb collision impact energy and redirect vehicles safely back toward the roadway. Its engineered design reduces the risk of vehicle rollover and prevents vehicles from moving beyond dangerous roadside areas, making it suitable for high-speed traffic zones and accident-prone road sections.

Hot dip galvanized coating provides superior protection against rust, corrosion, and weather damage, ensuring long-term durability with low maintenance requirements. The barrier is manufactured as per IRC / MORTH road safety standards and is available in multiple beam and post thickness options to meet different project requirements.

Single Side Single Beam Metal Crash Barrier is widely used in national highways, bridge approaches, road medians, industrial roads, hill roads, and infrastructure development projects across India. The system offers easy installation, strong structural stability, and dependable crash performance for modern road safety applications.

Single Side Single Beam Metal Crash Barrier
