Thrie Beam Single Side Crash Barrier
Thrie Beam Single Side Crash Barrier
₹ 2,700/Meter
Get Latest Price
| Parameter | Specification |
|---|---|
| Beam Type | Thrie Beam Single Side Crash Barrier |
| Beam Profile | Thrie Beam (3-Wave Design) |
| Beam Thickness | 2.3 mm / 2.7 mm / 3 mm |
| Beam Length | 3810 mm (Standard) |
| Beam Height | 510 mm (Approx.) |
| Material | High Strength Galvanized Steel |
| Material Grade | IS 5986 FE 410 / IS 10748 FE 410 |
| Post Type | C-Post / Z-Post / Sigma Post |
| Post Thickness | 4.3 mm / 4.7 mm / 5 mm |
| Post Height | 1800 mm (Customizable) |
| Post Spacing | 2000 mm (Center to Center) |
| Spacer Type | Spacer Block |
| Coating | Hot Dip Galvanized |
| Galvanization | 550 GSM (IS 2629 / ASTM A123) |
| Bolts & Nuts | Hot Dip Galvanized |
| Crash Absorption | High Energy Absorption System |
| Standard | IRC / MORTH |
Product Description

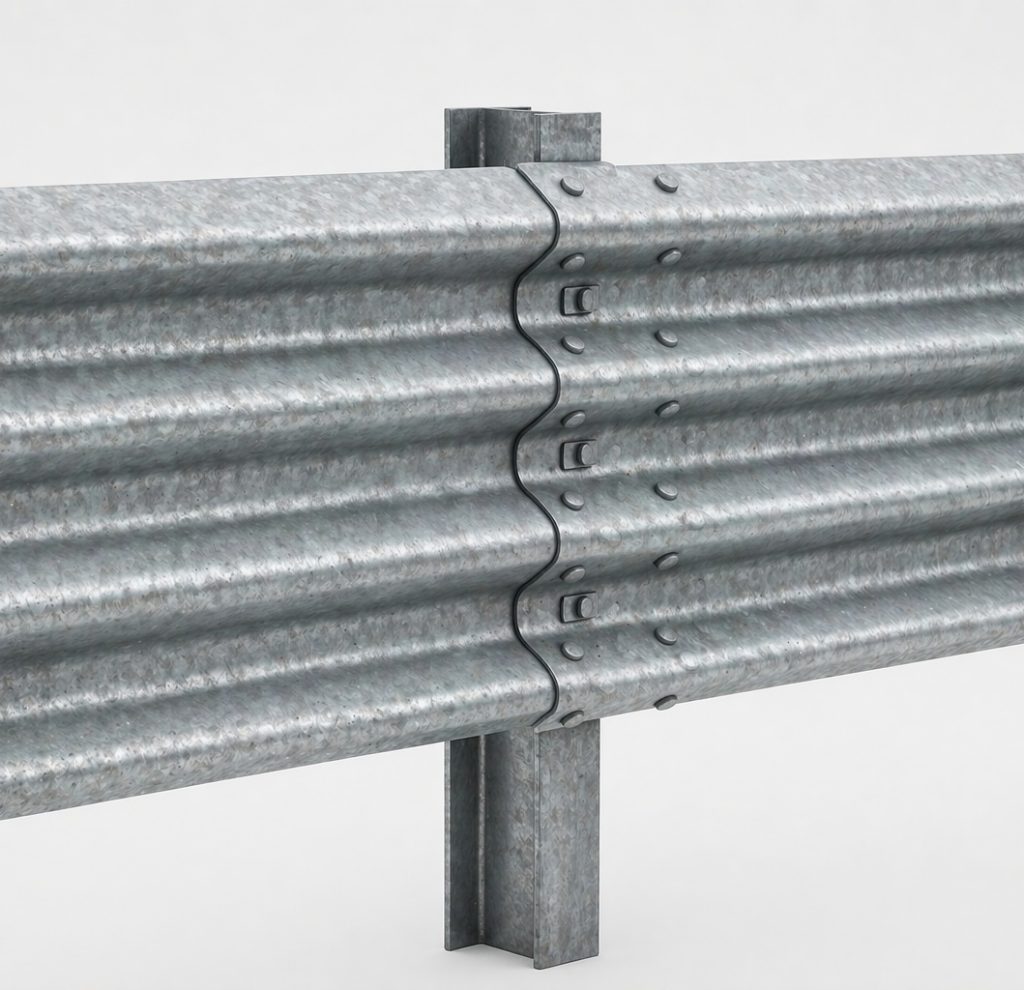

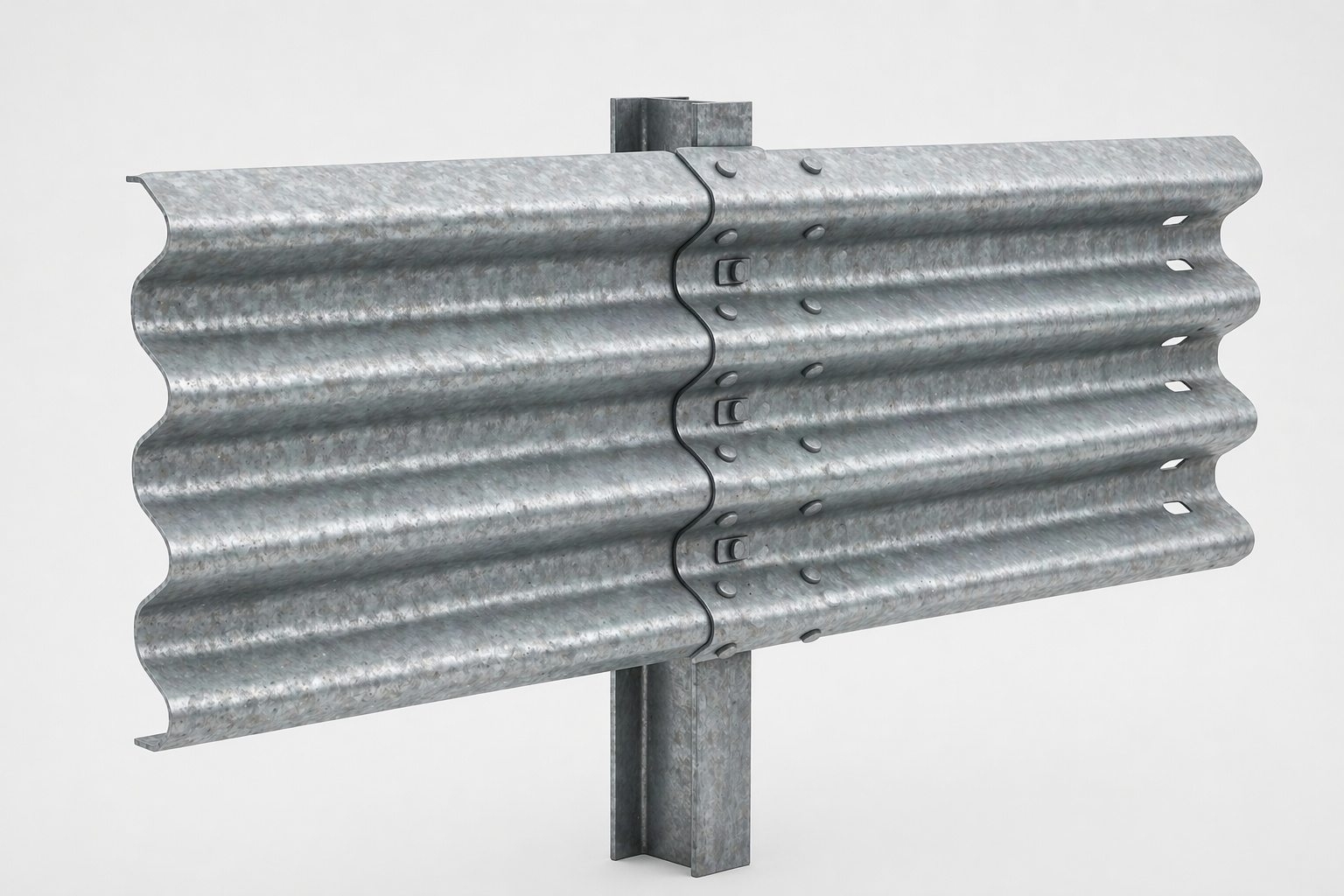

Thrie Beam Single Side Metal Crash Barrier is a high-strength roadside safety system designed to provide superior impact resistance and enhanced vehicle containment in high-risk areas. Featuring a 3-wave (thrie beam) profile on a single side, it offers higher rigidity, better energy absorption, and improved safety performance compared to standard W-beam barriers.
Key Technical Features
- Thrie beam (3-wave) design for enhanced structural strength
- Provides higher impact resistance than standard W-beam barriers
- Improved energy absorption and vehicle redirection control
- Manufactured from high tensile galvanized steel
- Hot dip galvanized coating (550 GSM) for corrosion protection
- Suitable for high-speed and heavy traffic conditions
- Compatible with C-Post, Z-Post, and Sigma Post systems
- Designed for long service life with minimal maintenance
Applications
• National highways and expressways
• Bridges, flyovers, and elevated roads
• Mountain roads and sharp curves
• Accident-prone and high-risk zones
• Industrial and heavy vehicle corridors
• Roadside safety installations
Why Choose Us
• High-strength Thrie Beam crash barrier manufacturing with durable steel construction
• Manufactured using premium quality galvanized steel for long service life
• Designed as per IRC / MORTH safety specifications
• Superior impact resistance and vehicle redirection performance
• Precision-engineered beam profile for enhanced roadway safety
• Heavy-duty galvanization for corrosion and weather protection
• Suitable for highways, bridges, flyovers, and expressways
• Strong production capability for bulk infrastructure projects
• Reliable quality testing before dispatch and installation
• Customization available as per project and site requirements
• Fast delivery support across India for urgent project needs
• Trusted supplier for road safety and infrastructure solutions
Detailed Description
Double Side Double Beam Metal Crash Barrier is engineered for maximum safety performance in critical road conditions. The system features dual-layer W-beams on both sides, which significantly enhances its ability to absorb impact energy and redirect vehicles safely, minimizing damage and reducing accident severity.
Its robust design makes it ideal for areas where heavy traffic flow, high-speed movement, and frequent accident risks are present. The use of high-strength steel combined with hot dip galvanization ensures that the barrier performs efficiently even under harsh weather conditions, offering long service life with minimal maintenance requirements.
This crash barrier system is widely preferred in infrastructure projects, government road works, and industrial zones, where safety, durability, and compliance with standards are essential. With customizable configurations and bulk supply capability, it is a reliable solution for large-scale road safety implementations.
