Single Side Double Beam Crash Barrier
Double Beam Single Side Crash Barrier
₹ 2,300/Meter
Get Latest Price
| Parameter | Specification |
|---|---|
| Beam Type | Double Beam Single Side Metal Crash Barrier |
| Beam Configuration | Two W-Beams mounted on single side |
| Beam Thickness | 2.67 mm / 3.15 mm |
| Beam Length | 3810 mm (standard) |
| Beam Height | 312 mm (each beam) |
| Material | High Strength Galvanized Steel |
| Material Grade | IS 5986 FE 410 / IS 10748 FE 410 |
| Post Type | C-Post / Z-Post / Sigma Post |
| Post Height | 1800 mm (customizable) |
| Post Thickness | 5 mm / 6 mm |
| Post Spacing | 2000 mm (center to center) |
| Spacer Type | Double Spacer Block |
| Coating | Hot Dip Galvanized |
| Galvanization | 550 GSM (IS 2629 / ASTM A123) |
| Bolts & Nuts | Hot Dip Galvanized |
| Crash Absorption | High Energy Absorption System |
Product Description
Double Beam Single Side Metal Crash Barrier is a high-performance roadside safety system designed to provide enhanced impact resistance and controlled vehicle redirection on highways and high-risk zones. With two W-beams mounted on a single side, this system offers improved structural strength, better energy absorption, and enhanced safety performance compared to standard single beam barriers. It is manufactured using high-strength galvanized steel and finished with hot dip galvanization (550 GSM), ensuring long-term durability and corrosion resistance in outdoor conditions.
Key Technical Features
- Double beam configuration for higher impact resistance
- Enhanced energy absorption and vehicle redirection system
- High strength galvanized steel construction
- Long-term corrosion resistance with hot dip galvanization
- Suitable for high-speed and high-risk road conditions
- Customizable design as per project requirements
- Easy installation and low maintenance
- Compatible with different post types (C, Z, Sigma)
Applications

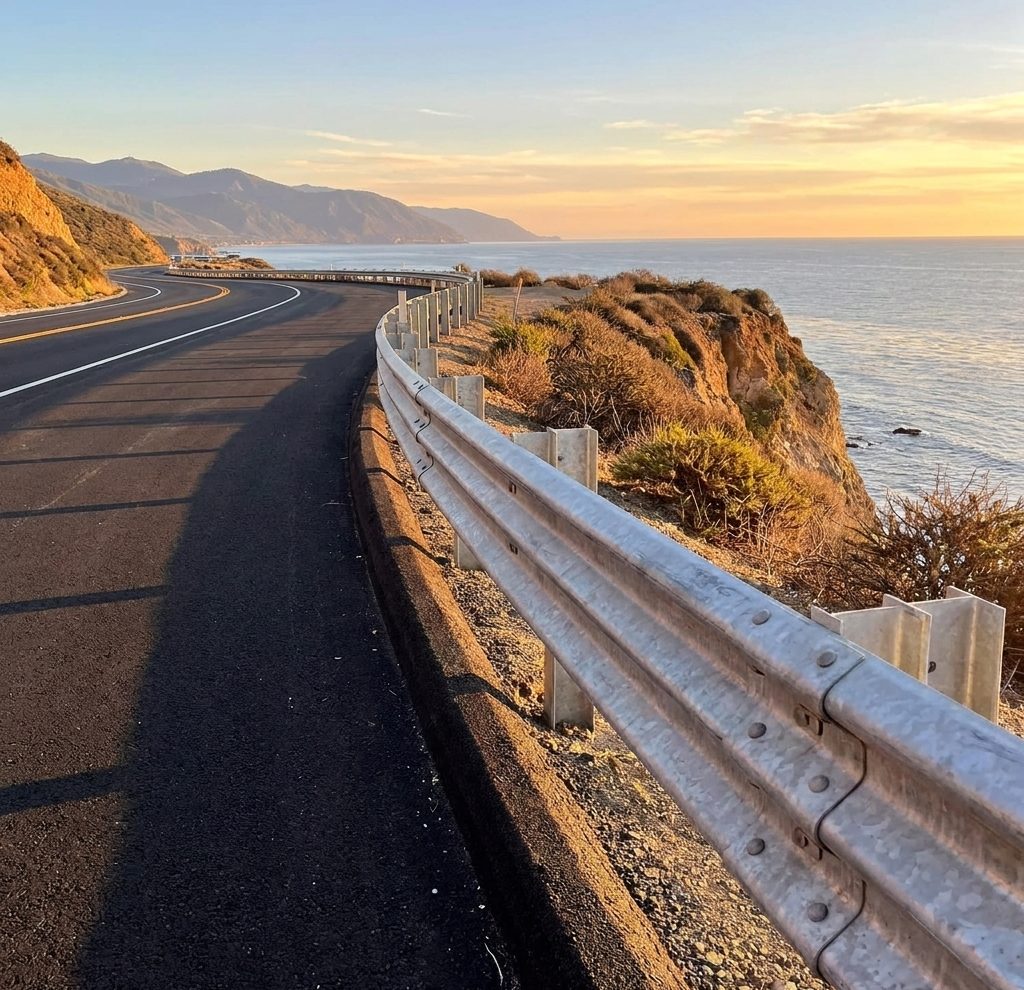

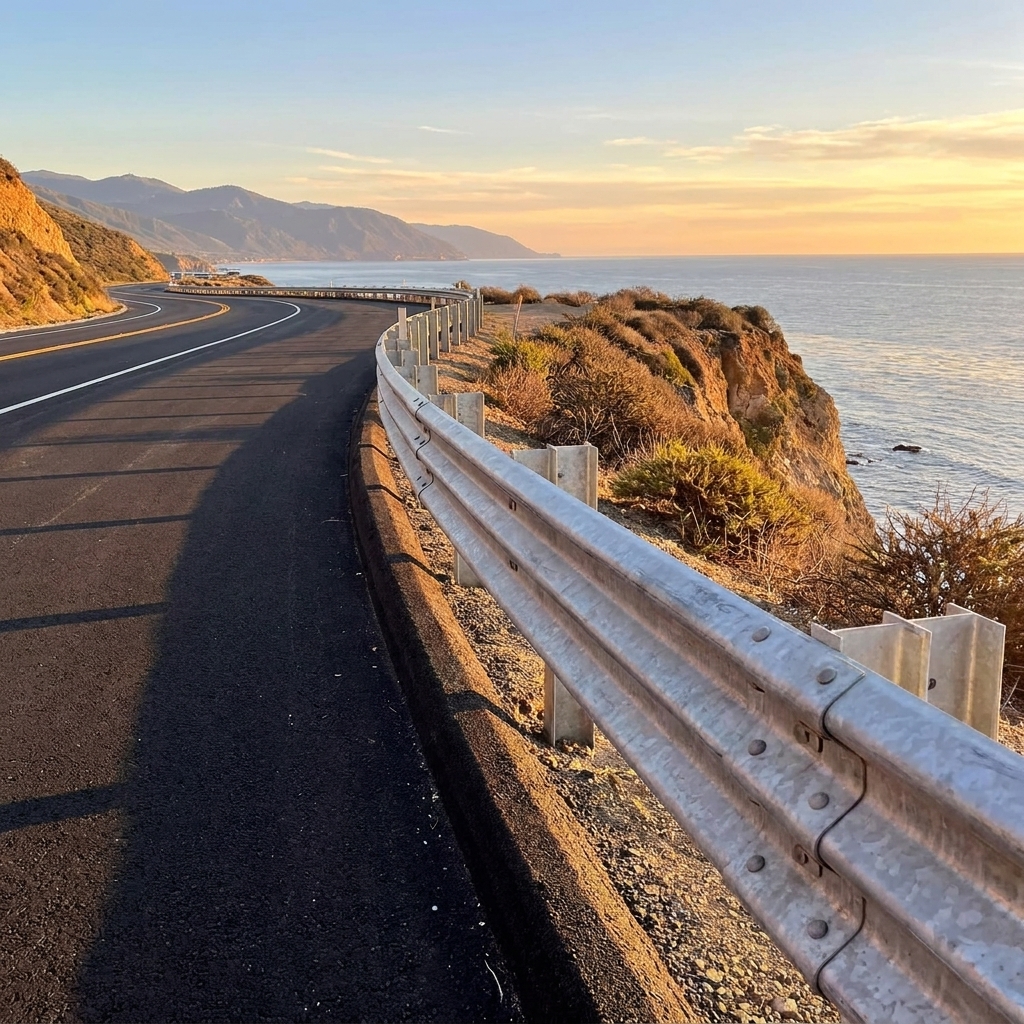

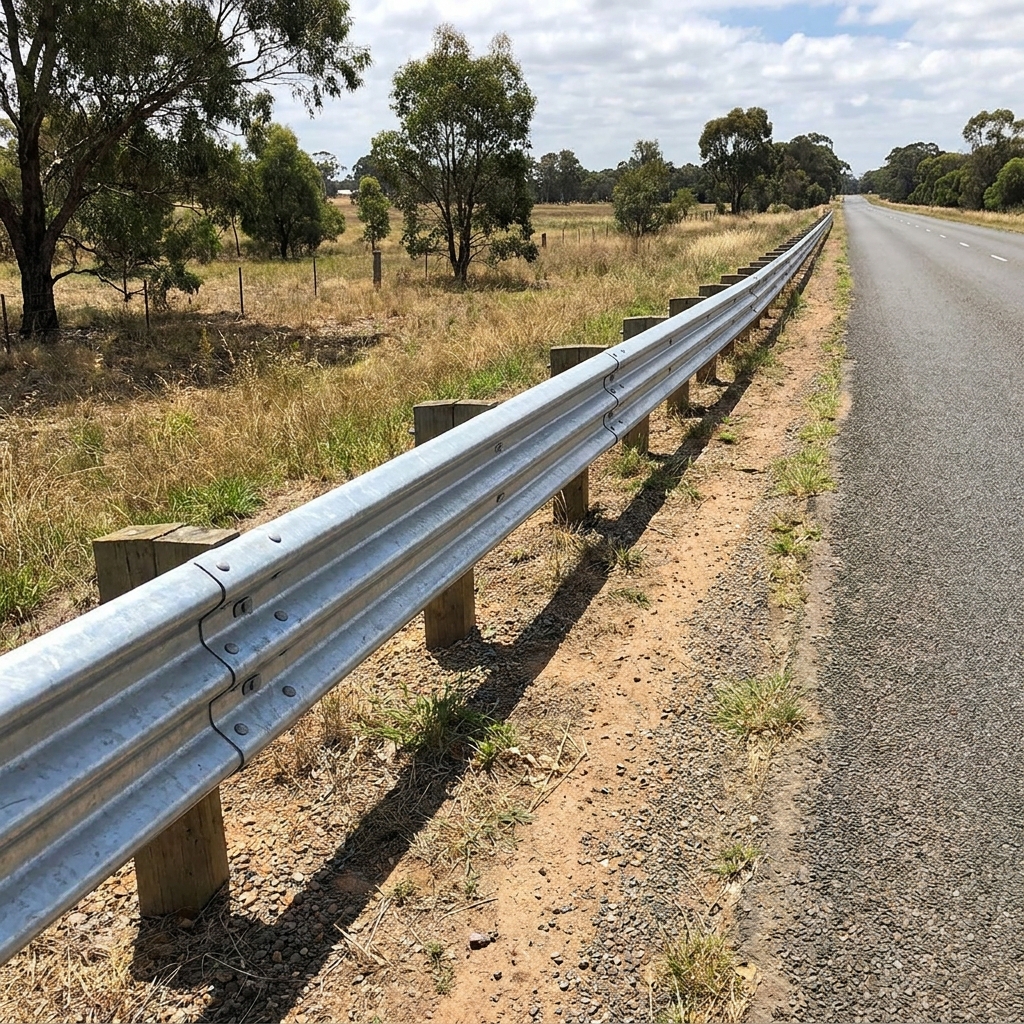

• National and State Highways
• Expressways and High-Speed Corridors
• Bridges and Flyovers
• Median and Roadside Safety Installations
• Industrial and Mining Roads
• Toll Plazas and Service Roads
• Accident-Prone and High-Risk Zones
Why Choose Us
• Manufacturing as per MORTH / IRC road safety standards
• Use of certified raw materials with traceable quality control
• Uniform galvanization ensuring long-term corrosion resistance
• Capability to supply bulk quantities across India
• Custom configurations available as per project BOQ requirements
• Technical support for installation and project execution
• Reliable logistics with timely delivery assurance
Detailed Description
Double Beam Single Side Metal Crash Barrier is a highly reliable road safety solution designed to minimize accident severity and improve vehicle control during collisions. Its dual-beam structure mounted on a single side provides superior strength and enhanced impact absorption, making it suitable for high-speed traffic environments.
The barrier system is fabricated using premium-grade steel and undergoes hot dip galvanization to ensure durability and resistance against corrosion. This makes it ideal for long-term outdoor use in varying climatic conditions across India.
Designed in accordance with IRC and MORTH standards, the system ensures compliance with government safety regulations and is widely used in highway infrastructure projects, bridges, and industrial road networks.

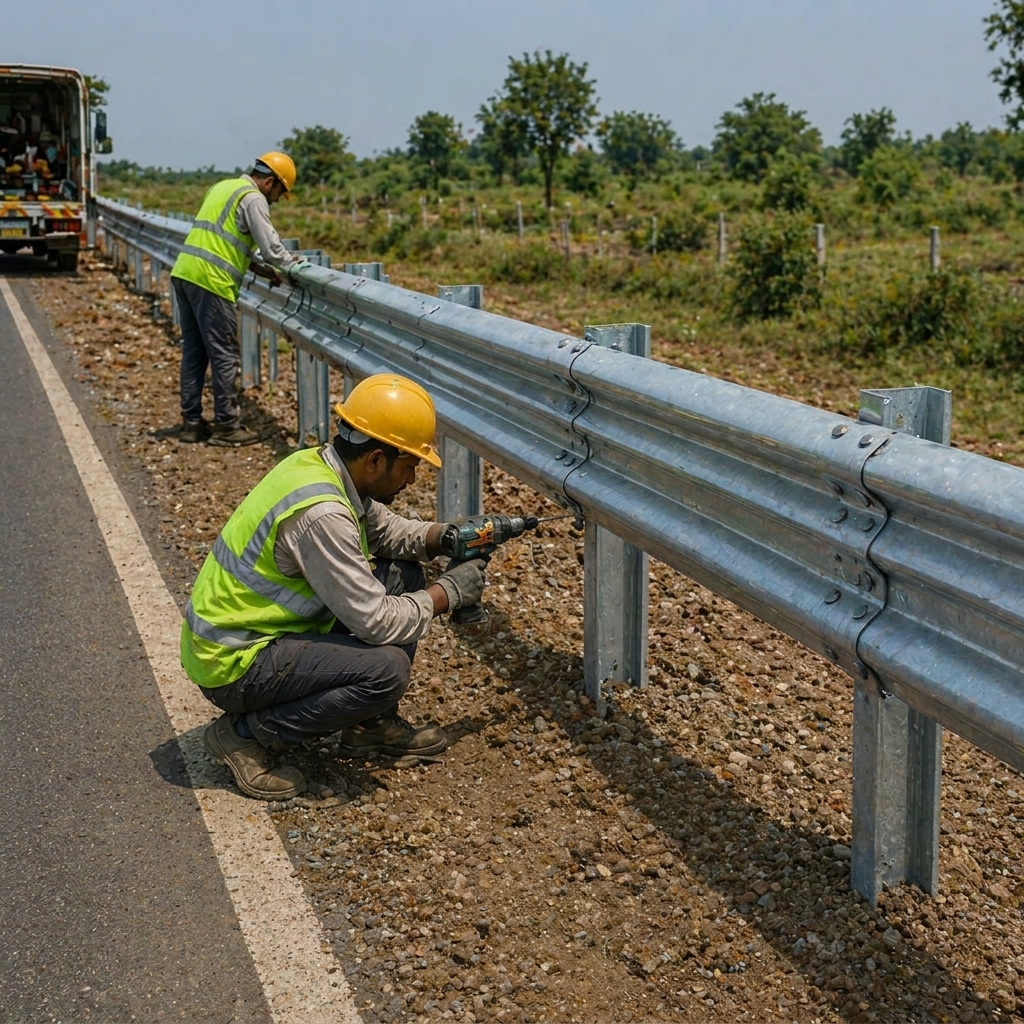

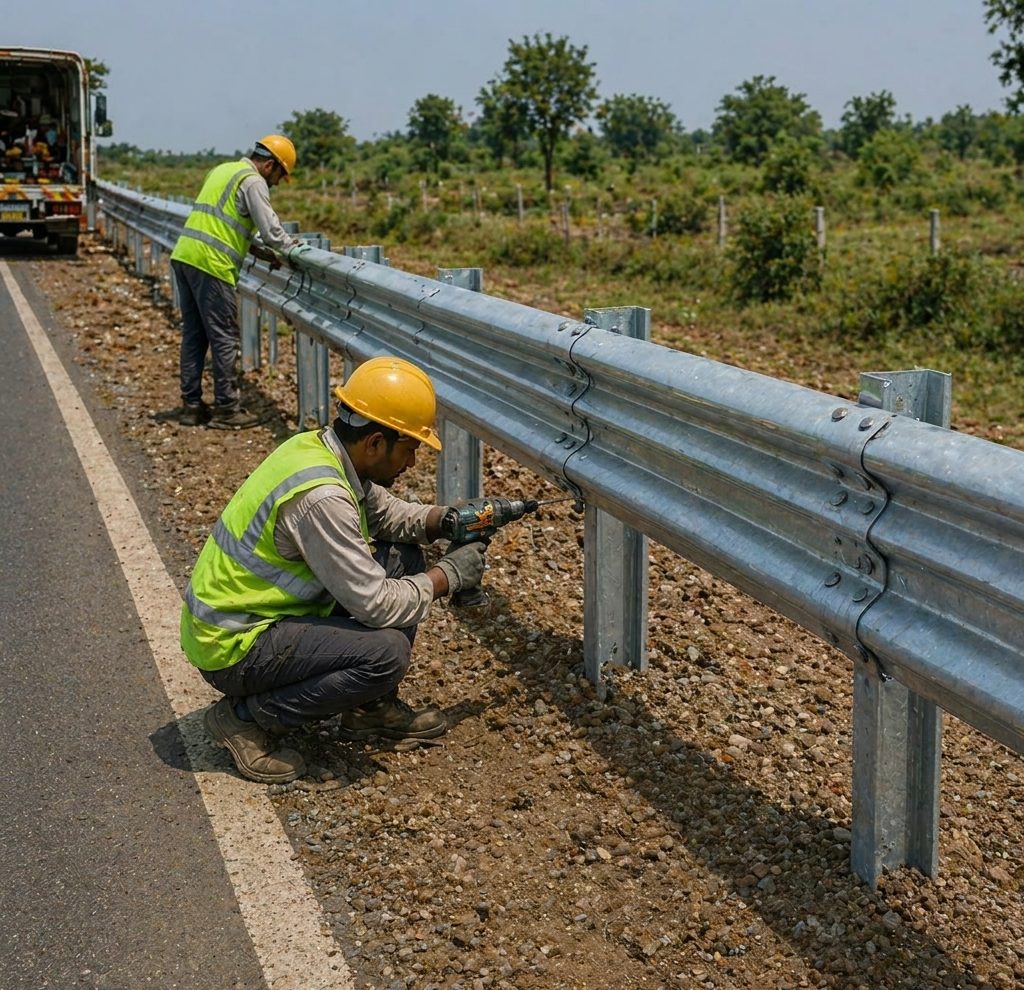

Its modular design allows for easy installation and maintenance, while customization options make it adaptable for different project specifications. Whether for public infrastructure or private industrial use, this crash barrier system delivers consistent performance, safety, and reliability.
